Truck Mounted Concrete Pumps

Truck Mounted Concrete Pumps

Concrete Pumps

Booms covering from 24m to 50m working range

R & Z type for all the application

X-Type Outrigger for stabilization

Closed Circuit Hydraulic Flow by Proportional System Distributor & S-Tube

Easy-to-Replace Wear Parts for the Maintenance & Hopper with Wear Resistant Materials & Large Capacity

Fully available for Mounting on all Truck Chassis

Concrete Placing Booms

Concrete Placing Booms

Concrete Placing Booms

Booms covering working range from 16 to 32m for Tower type and from 12 to 16m for Outrigger type.

Placing Boom designed by high technology structure.

Remote proportional control and Electrical Motor (7.5 to 20Hp) by 380VX3PX50/60HZ.

Truck Mixer Concrete Pumps

Truck Mixer Concrete Pumps

Truck Mixer Concrete Pumps

***New***Please be informed that now we are recycling one concrete pump mixer 31 m (upper kit) that will be ready in 3-4 weeks. This pump mixer will be certified by the factory manufacturer and will be covered by 1 year factory warranty.
Production year: 2008
Working hours: 1000
*********************************

Truck Mixer Concrete Pumps 27/28/31/35 m mounted on MAN,Mercedes,Iveco chassis

Vertical height: 27/28/31/35 m, minimum opening height 7 m

Mixer capacity: 9 m3; transmission with reductor gear

Water tank: 800 l

Origin: Italy

New and used truck mixer concrete pumps

Spare Parts & Accessories

Spare Parts & Accessories

Spare Parts & Accessories

Spare Parts & Accessories

All the Parts and Accessories are available, with high quality and competitive prices.

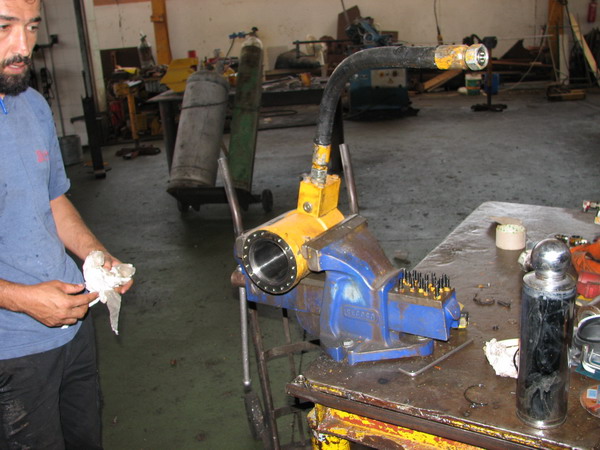

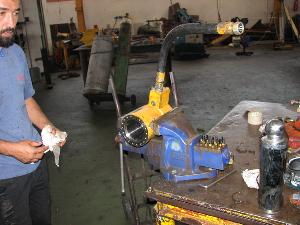

Service

Service

Service

We offer to Our Customers after sales service and service.

Recycling of used concrete pumps.

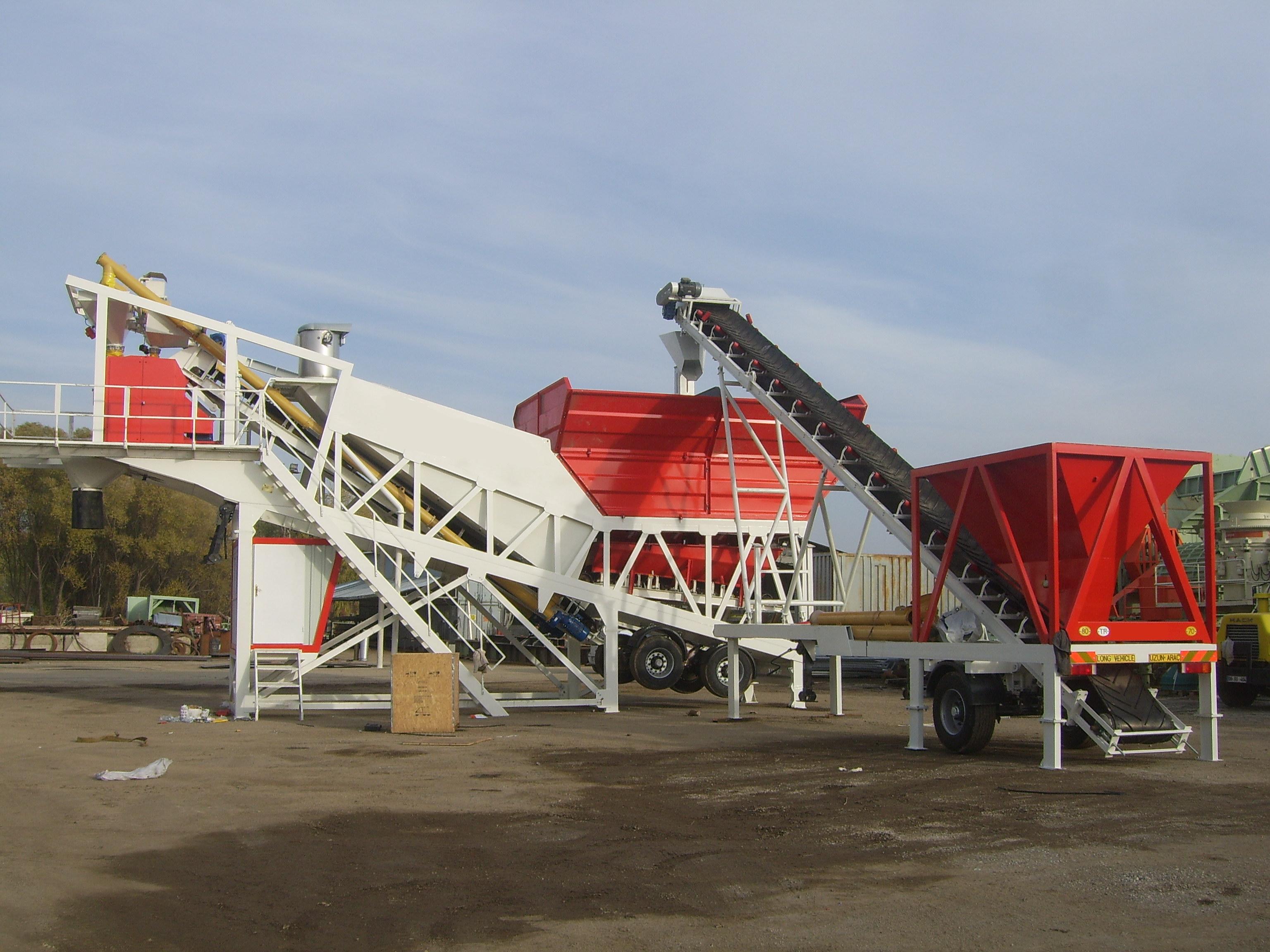

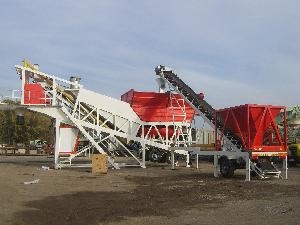

MOBILE CONCRETE BATCHING PLANT CAPACITY 60 m3/hr

MOBILE CONCRETE BATCHING PLANT CAPACITY 60 m3/hr

MOBILE CONCRETE BATCHING PLANT

4x10= 40 m3 capacity Aggregate hoppers
Aggregate weighing hopper 4 m3 capacity
Aggregate weighing belt
Transfer belt conveyor
Mixer Units;
- Cement weighing system
- Water weighing system
- Additive dosing system


Cement Silos ( 2X15=30 ton )
Cement Screw Conveyor (219x1000 mm)
Control Panel and computerated automation system
Cabin 1.8 X2.4 m 1
Mobile Main chassis
- Mobile chassis ( 8mm )
========================================================================
- OPTIONAL EQUIPMENTS
==========================
Mobile aggregates loading system
- 7 m3 hopper capacity
- Belt conveyor 800X7700 mm
- Mobile chassis 2400X10000mm
- Axes ( Auto spring type )
- Wheel ( 1100 / 20 ) 2 units
Welded Cement Silo – 100 tons
Bolted Cement Silo – 100 tons
Mobile Cement Silo – 70 tons
Cement screw conveyor 219x6000
Cement Screw accessories
Dust filter for cement silo

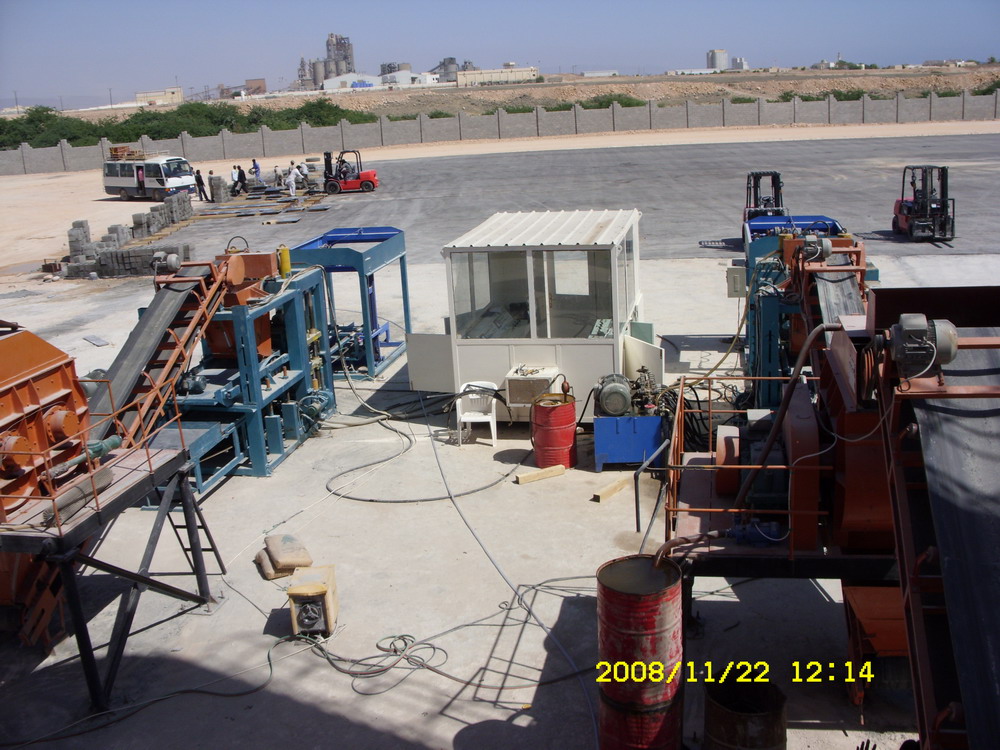

BS10-15  Automatic block machine

BS10-15 Automatic block machine

BLOCK MAKING MACHINE

(1) BS10-15 Main technical parameters

Dimension of host machine 3500x222x2850mm Host machine power 45.38KW
Moulding area 1025x810mm Vibration force 100KN
Moulding period 15-25S Mixer model JS1000
The size of the pallet 1350x900x30mm General water Consumption 12T/every day
Weight of the host machine 13.5T
Voltage 380V
Theoretical workshop area : 250m2 , need about 8-12workers .the office , curing area and stacking area to arrange according your fact status.

(2) Production capacity

Size(LxWxH) Pcs/Mould Pcs/ Hr Pcs/ 8 Hr
400X100X200 20 3000-3600 24000-28800
400X150X200 14 2100-2520 16800-20160
400X200X200 10 1500-1800 12000-14400
400X250X200 8 1200 9600
Paver:200X100X60 35 5250 42000
Paver:200X165X60 20 3000 24000

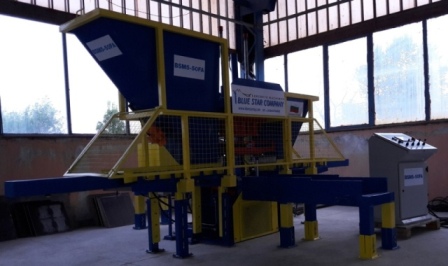

BSM5-50FA MADE IN BLUE STAR CO. BULGARIA

BSM5-50FA MADE IN BLUE STAR CO. BULGARIA

BLOCK MAKING MACHINE

Full automatic block making machine.
Blue Star Co. design from Bulgaria.EU

BS LINE MACHINE FROM BLUE STAR

VIDEO BLOCK MACHINE

Video BSY2-20

VIDEO BLOCK MACHINE

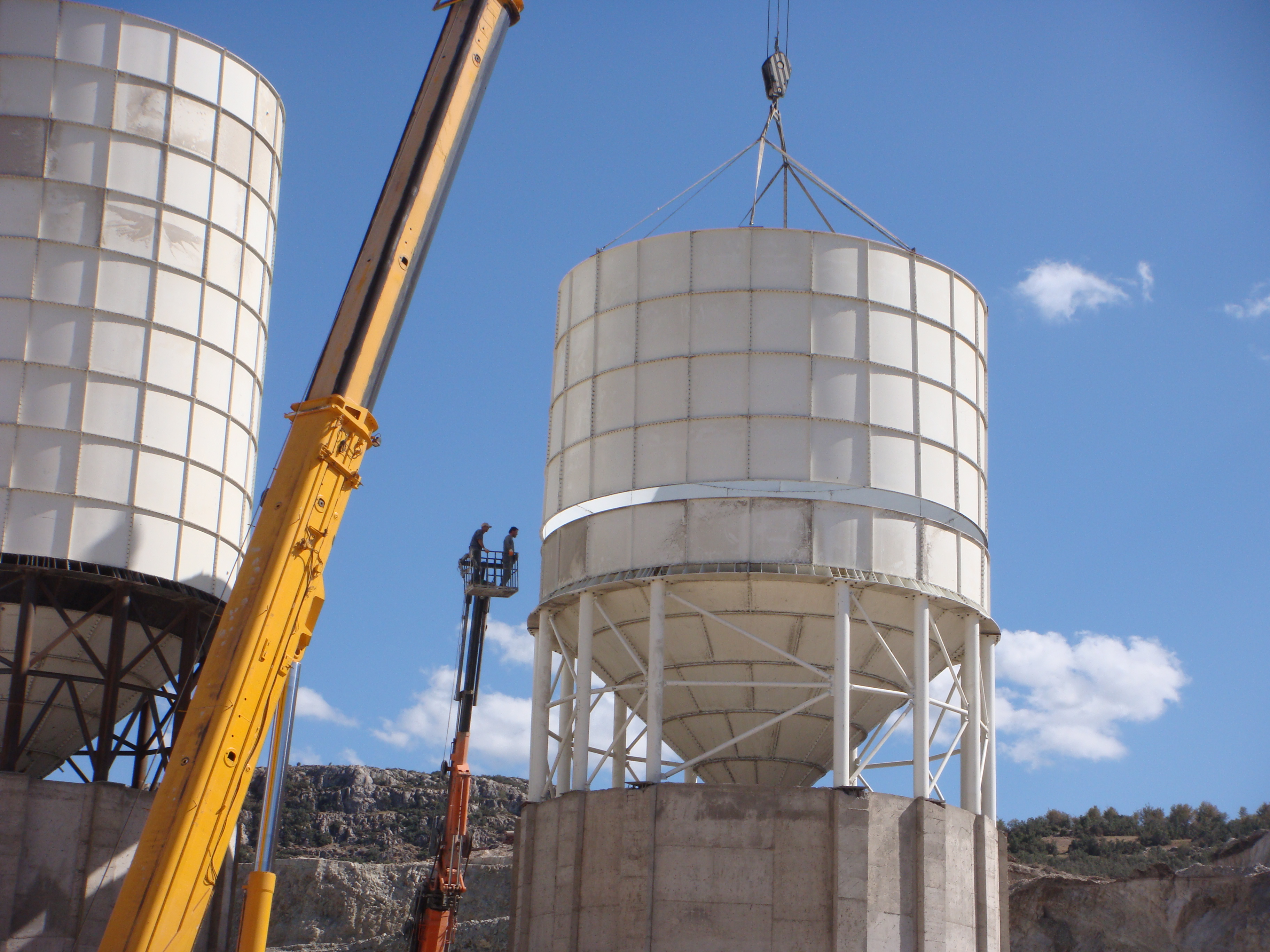

SILOS

SILOS

SILOS

Recently we sell cement silos about 20 to 2000 ton, produced by laser cutting technology and bolted system, as well cement silo accessories
